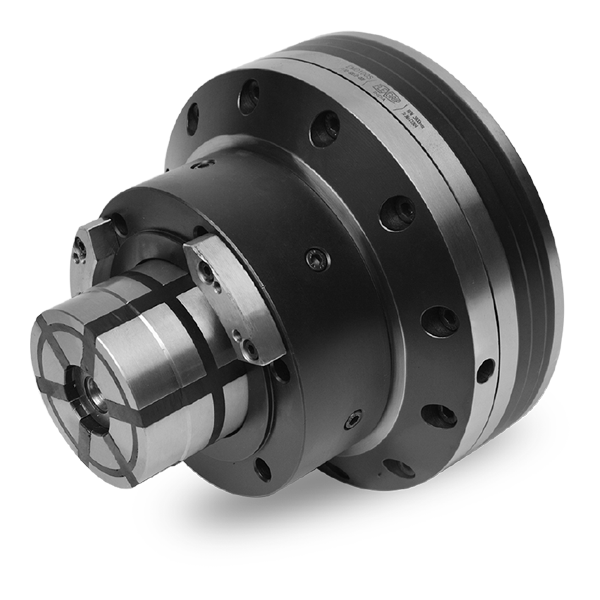

Expansion Mandrel Dead Length (EMD)
Total Views |
- Designed for ID Clamping in CNC turning centres / Turn-mill centres and other rotating part machine tools with Power chucking arrangement.
- Vulcanized Clamping Sleeve closes only in radial direction.
- Available in Size EMD63E, EMD100S.
- High rigidity due to true straight line / parallel clamping.
- Run out accuracies can be achieved within 0.010mm.
- Also available for stationary part applications with in-built hydraulic actuator.
#Technical specs are subject to change without notice due to continual improvement.
NOTES:
1.L4,L5 denote Drawtube In & Out position.
2.* Flat Nose G140, G110 or other special executions for Spindle Mounting are available on request.
3.Drawbar / Drawtube not in standard scope of supply.
