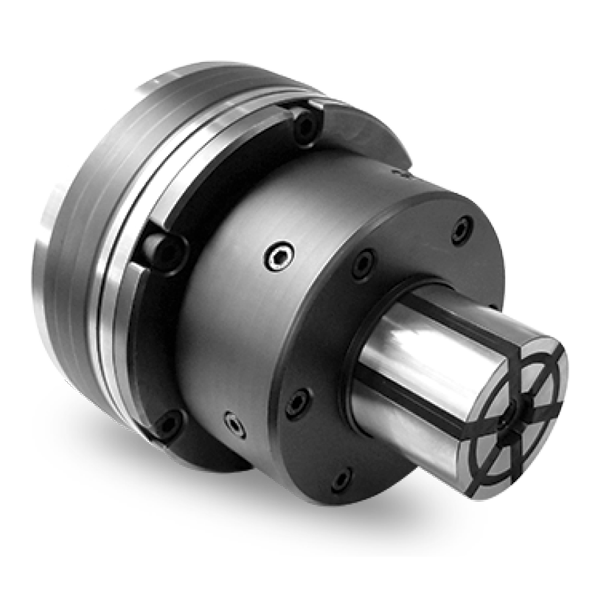

Expansion Mandrel Pull Back

▪ Designed for ID Clamping in CNC turning centres / Turn-mill centres and other rotating part machine tools with Power chucking arrangement.
▪ Vulcanized Clamping Sleeve closes in radial as well as axial direction and pulls the part against end stop.
▪ Available in Size EMP25E, EMP50E, EMP63E, EMP100S, EMP130S
▪ High rigidity due to true straight line / parallel clamping. Run out accuracies can be achieved within 0.010mm
▪ Also available for stationary part applications with in-built hydraulic actuator.

NOTES:

L4,L5 denote Drawtube In & Out position.
* Flat Nose G140, G110 or other special executions for Spindle Mounting are available on request.
Drawbar / Drawtube not in standard scope of supply.
