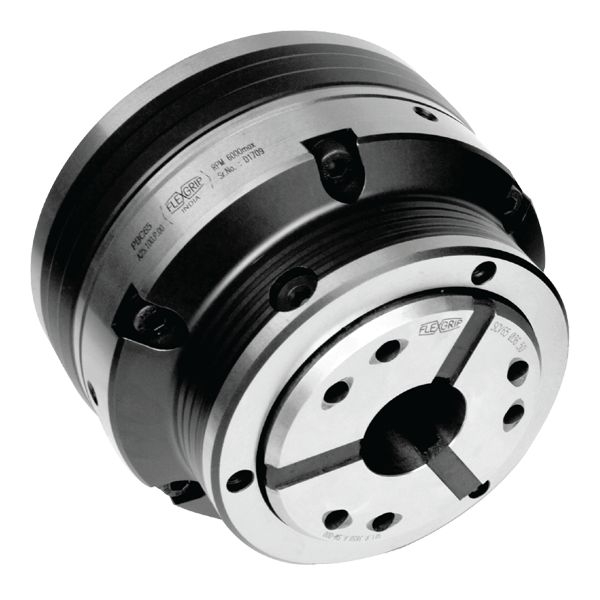

PBC

▪ Designed for OD Clamping in CNC turning centres / Turn-mill centres and other rotating part machine tools with power chucking arrangement.
▪ Clamping head closes in radial as well as axial direction and pulls the part against the dead stop.
▪ Perfectly suitable for chucking type parts with or without centre support.
▪ Available in Size P PBC-42, PBC-65, PBC-100 & PBC-160
▪ Superior control on length dimensions
▪ High rigidity due to true straight line / parallel clamping.
▪ Run out accuracies can be achieved within 0.010mm
