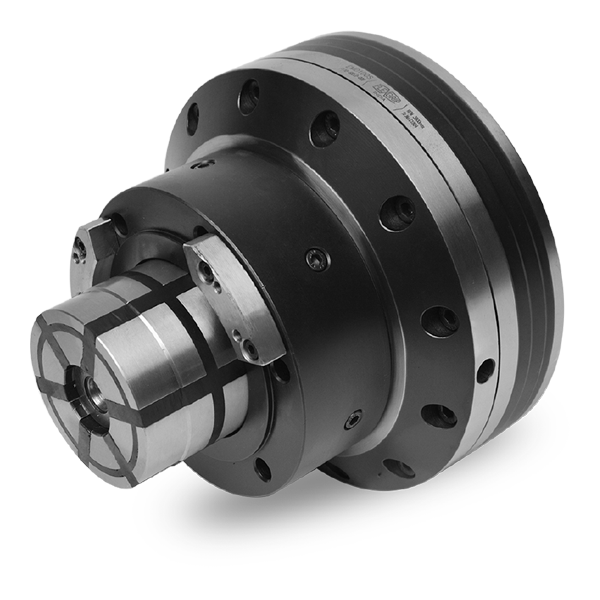

Expansion Mandrel Dead Length (EMD)

▪ Designed for ID Clamping in CNC turning centres / Turn-mill centres and other rotating part machine tools with Power chucking arrangement.
▪ Vulcanized Clamping Sleeve closes only in radial direction.
▪ Available in Size EMD63E, EMD100S.
▪ High rigidity due to true straight line / parallel clamping.
▪ Run out accuracies can be achieved within 0.010mm.
▪ Also available for stationary part applications with in-built hydraulic actuator.

#Technical specs are subject to change without notice due to continual improvement.

NOTES:

L4,L5 denote Drawtube In & Out position.
* Flat Nose G140, G110 or other special executions for Spindle Mounting are available on request.
Drawbar / Drawtube not in standard scope of supply.
